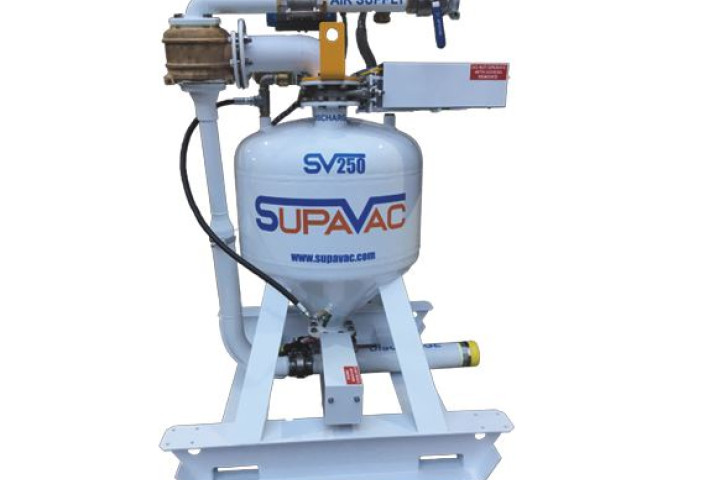

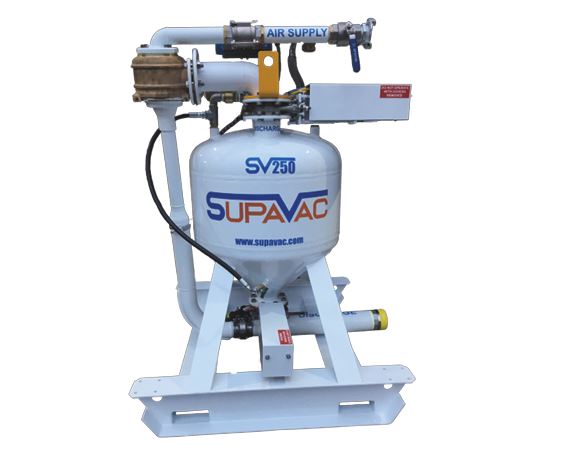

Solids/Mining Slimes Vacuum Pump (SV250V - Vertical)
The SV250V Pump is a vacuum loading pressure discharge batch system that can recover flowing slurries from up to 50 metres (164 ft) and deliver the same up to 1000 metres (1640 ft) whilst remaining a one person or fully automatic operation.
Technical Properties
- 165 cm
- 129 cm
- 120 cm
- 680 kg
- minimum 150/270/400/600/750 cfm (75/128/189/284/354 L/sec) at minimum 85psi (6 bar) to 100psi (7 bar) at the pump
- 50 mm (2inch)
- Up to 25inHg+ (85kPA)
- 100 mm (4 inch)
- 100 mm (4 inch)
- Up to 70 mm
Areas of Usage
- Drilling mud and cuttings transfer, Thickener de-sludge, Petrochemical tank cleaning, Heavy crude transfer, Barge and hull cleaning, Sump and shaft de-mucking, Tailings and ash pond cleaning, Raw effluent pond de-sludging, Hazardous waste recovery, Transfer of mining slurries
Features
- Intrinsically safe, Manual or fully automatic operation, High vacuum and high airflow, Throughput capacity up to and in excess of 40 m3/hr (176USGPM) @ SG1.0, Variable air consumption 150 - 750 cfm (75 - 354 L/sec), Robust and compact, Gravity feed capability, Roll cage and weather cover (optional)
Material Options
- Carbon steel vessel, Also available in Class 3 carbon, 316 stainless steel or polyurethane coated tanks, Roll cage and weather cover
