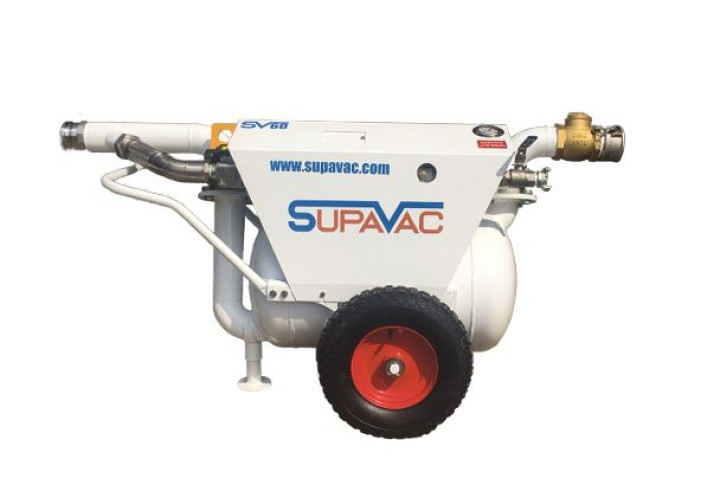

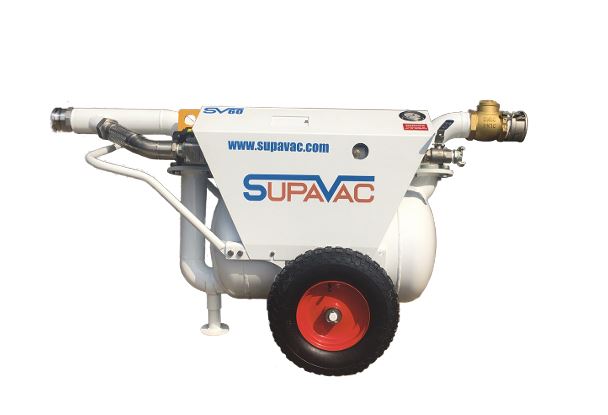

Portable Slurry Vacuum Pump (SV60 - Horizontal)
The SV60 Portable Slurry Pump is designed to offer the operator a one man vacuum recovery, pressure discharge pump capable of recovering and transferring up to 27m3/hr (119USGPM) @ SG1.0 of almost any flowable material.
Technical Properties
- 82 cm
- 73 cm
- 165 cm
- 198 kg
- up to 27m3/hr (119US GPM) @ SG1.0
- 150cfm (71 L/sec) at minimum 85psi (6bar) to 100psi (7bar) at the pump
- 25 mm (1 inch)
- Up to 25inHg+ (85kPa) vacuum
- 75 mm (3 inch)
- 75 mm (3 inch)
- Up to 50 mm
Areas of Usage
- Spillage recovery and transfer, Sump cleaning and desilting, Tank bottoms and sludge extraction, Pneumatic excavation and dewatering, Transfer of mining slurries and slimes, Drain desilting, Effluent transfer, Hazardous waste transfer, Agricultural product and waste transfer, Corrosive slurries (316SST MOC)
Features
- 100% compressed air operation, Multipurpose vacuum pump, Intrinsically safe, Fully automatic, Versatile, No internal moving components, Minimal maintenance, High vacuum and high airflow, Recovers material from up to 50 metres (164 ft), Delivers up to 500 metres (1640 ft)
Material Options
- Carbon Steel Vessel, Also available in 316 stainless steel materials of construction, Skid mount / roll frame weights / dimensions on request
