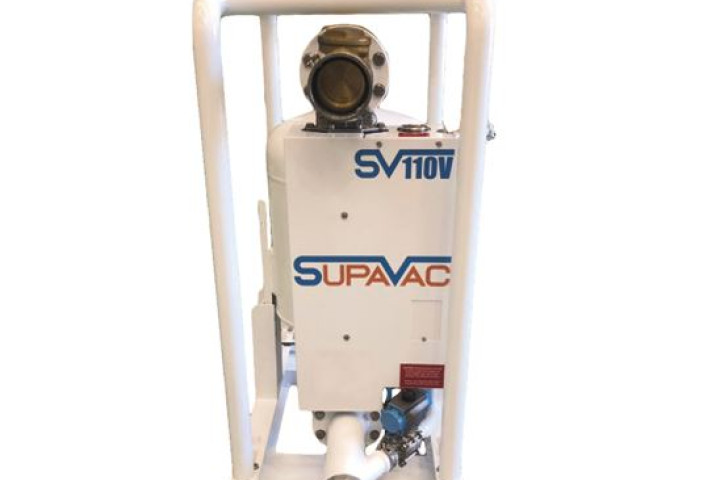

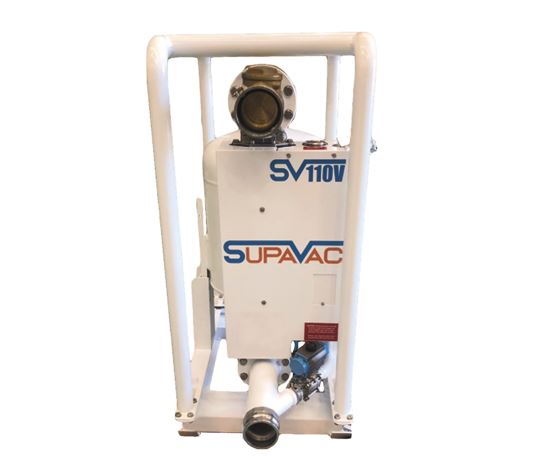

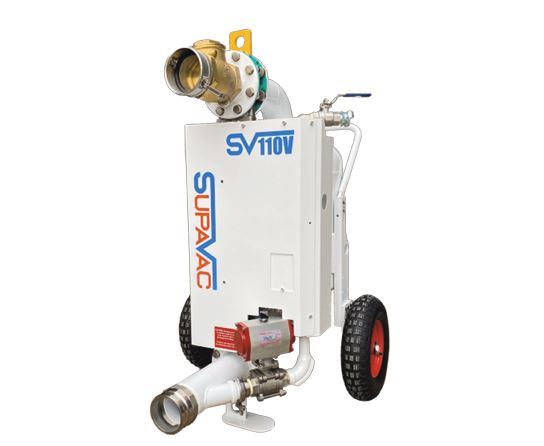

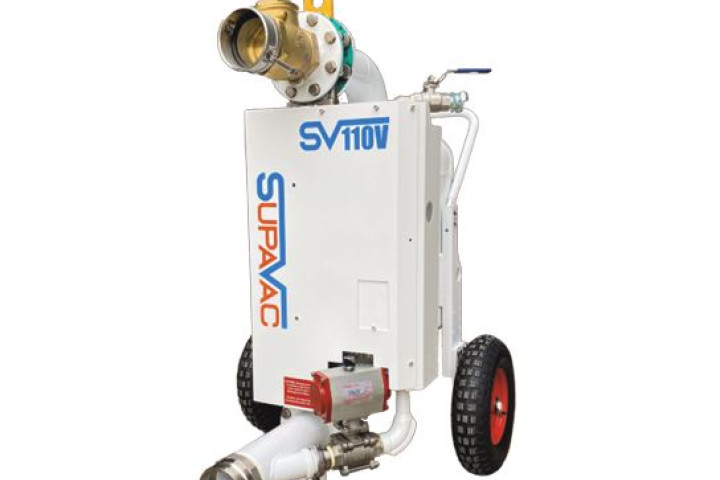

Mobile Solids and Sludge Vacuum Pump (SV110V - Vertical)
The SV110V Mobile Sludge Pump is a vacuum loading pressure discharge batch system that can recover from up to 50 metres (164 ft) and deliver in excess of 500 metres (1640 ft) whilst remaining a one man or fully automatic operation.
Technical Properties
- 136 cm
- 83 cm
- 140 cm
- 241 kg
- up to 32m3/hr (140US GPM) @SG1.0
- minimum 280 cfm (132 L/sec) at minimum 85psi (6 bar) to 100psi (7 bar) at the pump
- 25 mm (1 inch)
- Up to 25inHg (85kPa)+
- 100 mm (4 inch)
- 100 mm (4 inch)
- Up to 70 mm
Areas of Usage
- Thickener de-sludge, Tunnelling and TBM applications, Sump and shaft cleaning, Tailings and ash pond cleaning, Digester and pond cleaning, Oil spill capture and transfer, Hazardous waste recovery, Drilling mud and cuttings transfer, Transfer of mining slurries, Agricultural product and waste transfer
Features
- ATEX Zone 2/CE conformity, 100% compressed air operation, Multipurpose vacuum pump, Intrinsically safe, Fully automatic, Versatile, No internal moving parts, Minimal maintenance, Robust construction, High vacuum and high airflow, Recovers material from up to 50 metres (164ft), Delivers over 500 metres (1640ft), Skid or wheel mounted
Material Options
- Carbon steel vessel, Also available in Class 3 carbon, 316 stainless steel or polyurethane coated tanks, Skid mounted/roll frame weights dimensions on request
