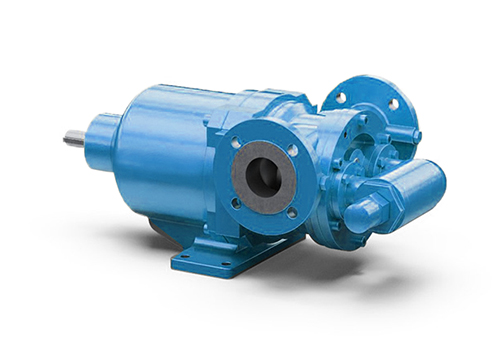

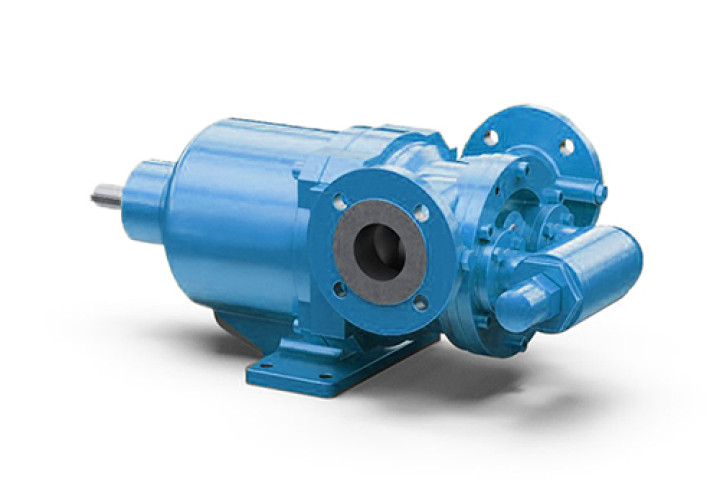

Magnetically Driven Gear Pump
For clean low – high viscosity lubricating fluids. Being positive displacement our magnetically driven gear pumps are suitable for high pressure applications up to 12 bar depending on the model configuration selected and fluid being pumped.
Technical Properties
- 1 1/2
- Up to 55 m3/h
- Up to 12 bar
- Up to 250oC
- Up to 1500 rpm
- 10 - 5.500 cSt
Areas of Usage
- Caustic, Isocyanate, Adhesive, Solvents, Paint/Dye industry, Medicine, Chemistry, Detergent industry, Food industry
Material Options
- Pump Body and Cover: Cast Iron, Cast Steel, Stainless steel AISI 304/316
- Gears: Cast Iron, Ductile Cast Iron, Cast Steel, Stainless steel AISI 304/316
- Sealing: Mag drive
